View equipment options
KASKOEXTERIEUR 11060.03 Linssen e-Variodeck® (electric sliding roof) in the saloon
STAINLESS STEEL 12020.02 Polished stainless steel side ladder, hinged and integrated into the railing (BB and SB) 12071.01 Stainless steel protection set for railing openings in gangways, the passages from gangway to cockpit and transom (5x)
TECHNIK 13290.03 Hot air blower in the cockpit, connected to the hot air heater.
COLOUR SYSTEMCOLOUR SYSTEM& DECK FINISH 21090.15 Original Linssen Dark Grey colour scheme: Hull: Dark Grey Superstructure: Egg Shell White Waterline: Egg Shell White Antifouling: Black Wieling: Black Canopies and persenings: Sunbrella Cadet Grey Glass Saloon window/ventilation escape hatch: “Smoke Grey” tinted

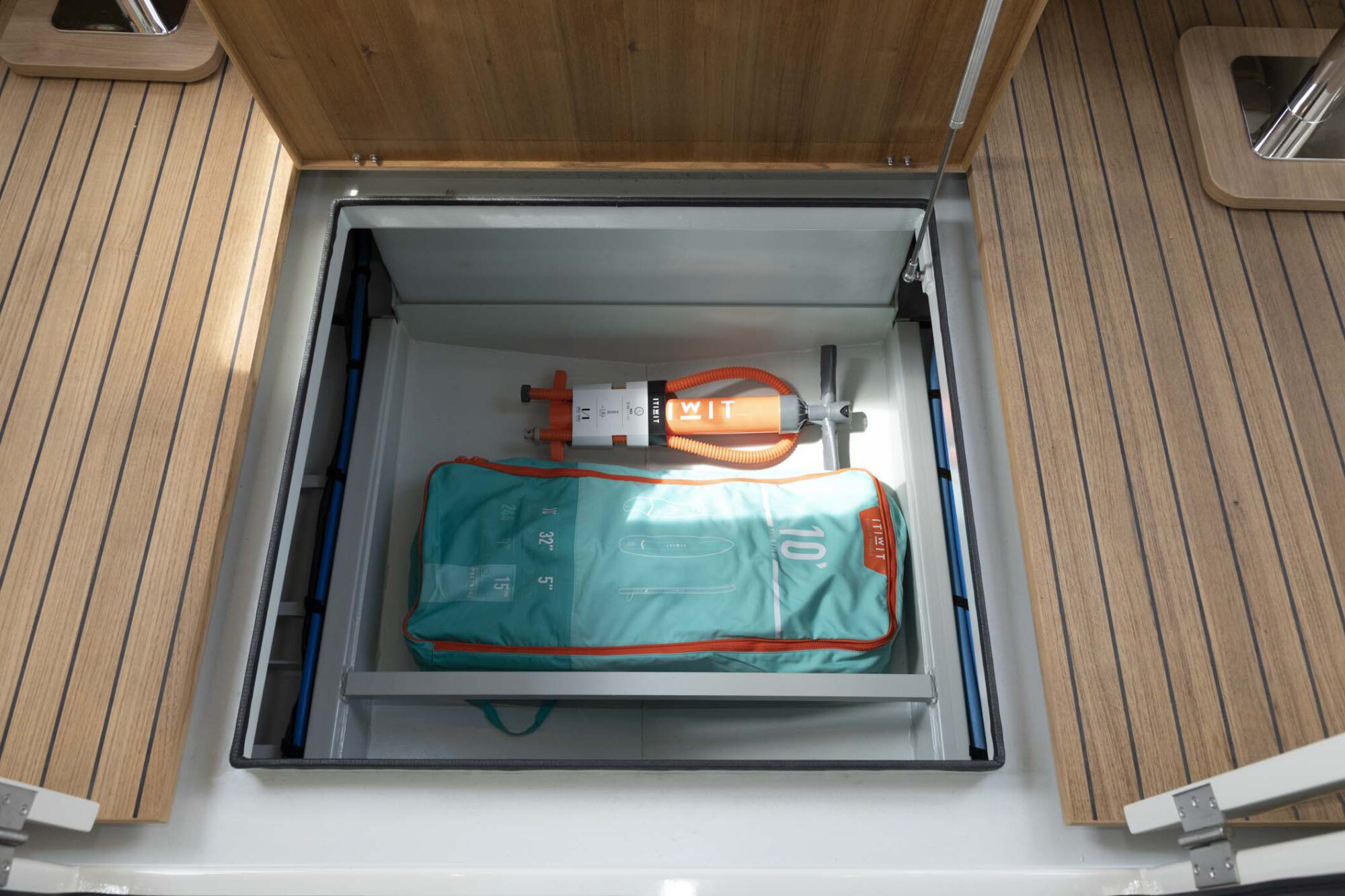

MACHINE ROOM ENGINEERING 31050.03 12V stern thruster 55 kgf (3 kW / 4 hp) 31740.01 Access to storage space in the cockpit via stairs
BORDWASSER 32150.04 Deck wash pump including hose and spray gun with connection at the bathing platform
ELEKTRO & ELEKTRONIK 33082.02 Additional maintenance-free “Super Cycle” AGM on-board power supply battery 170 Ah.
(2x 170 Ah on-board power supply batteries in total) 33271.02 Automatic battery charger/converter type Victron Multiplus Compact 12/1600-70 (70A/1600W.) with remote panel.
Peak power 3000 W.
(2x 170 Ah on-board power supply batteries in total) 33271.02 Automatic battery charger/converter type Victron Multiplus Compact 12/1600-70 (70A/1600W.) with remote panel.
Peak power 3000 W.

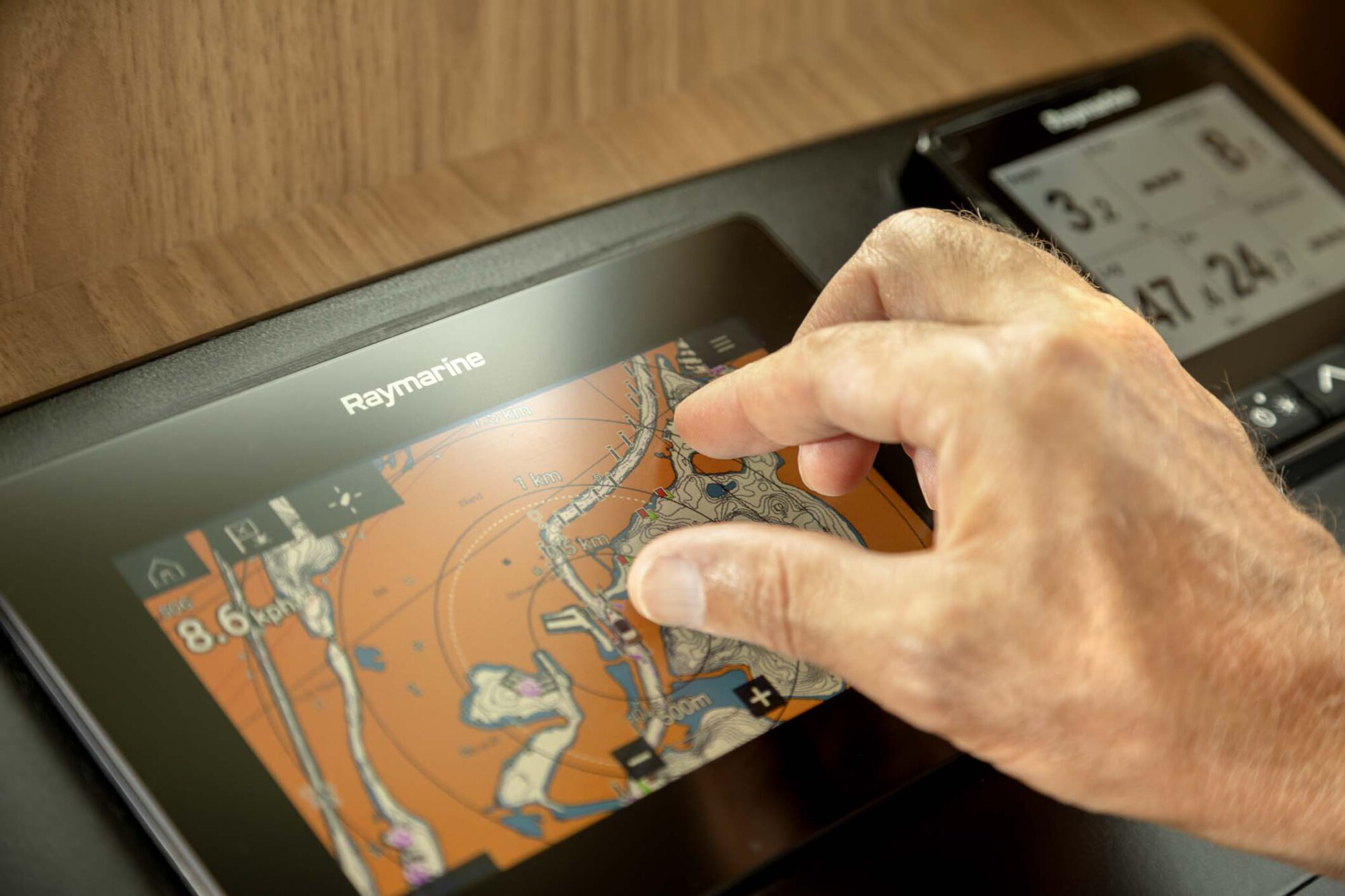

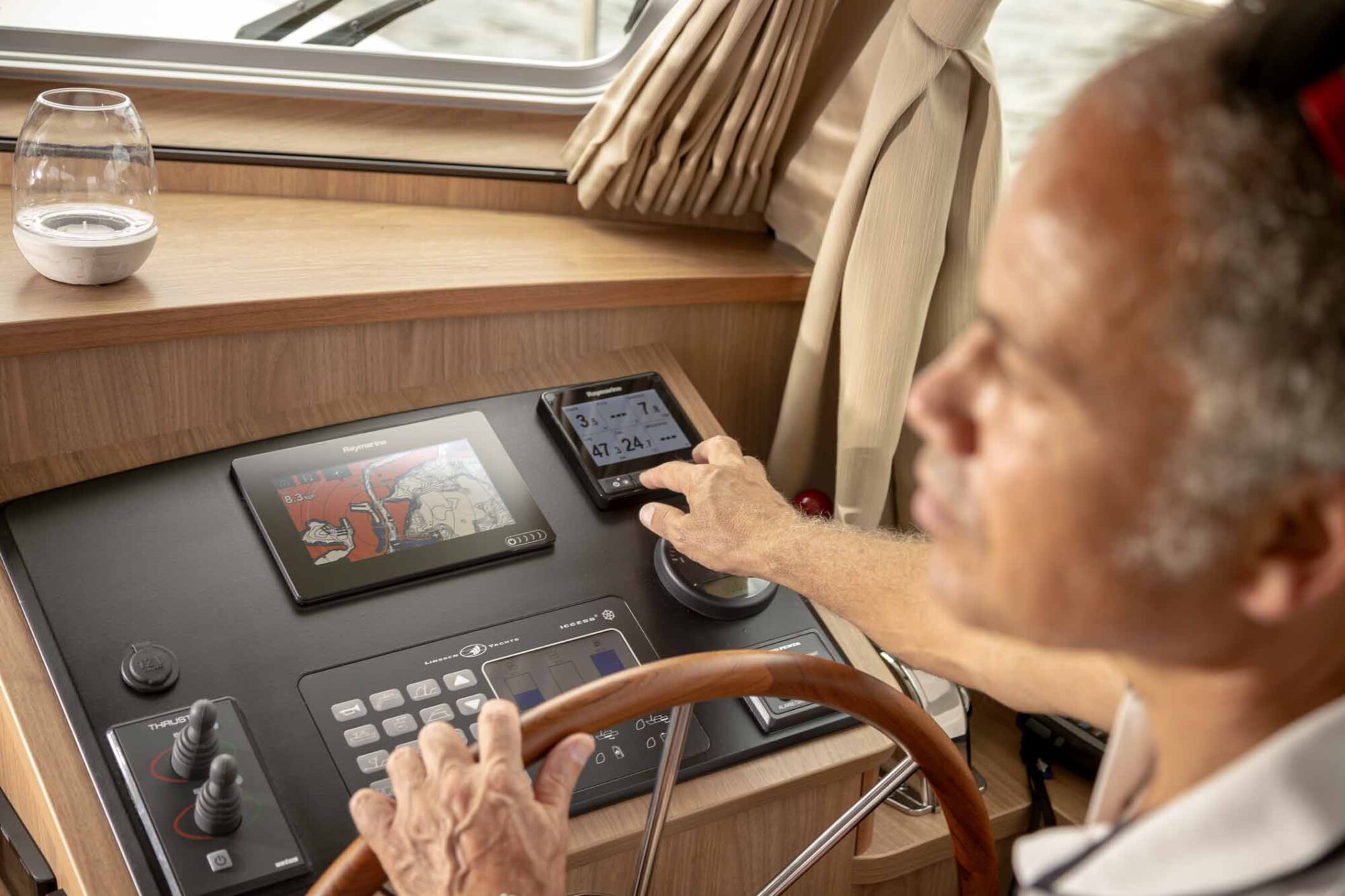

INSTRUMENTS & NAVIGATION BASENAVIGATION PACKAGE BASEPACKAGE 34090.16 Rudder angle indicator on Raymarine Axiom display at helm 34125.01 Raymarine Axiom+ 7 multifunction instrument 34140.03 Navionics Gold XL9 chart type 46XG, West Europe 34150.02 Raymarine RS150 GPS antenna in mast
REMOTE PACKAGES 31067.01 Remote control for bow (and stern) propeller
COMMUNICATION PACKAGES 34190.09 VHF system type Raymarine Ray90 / Class D “Digital Selective Calling” (DSC) at helm position including antenna in mast
EQUIPMENT EXTERIEUR RUMPF 35040.01 Ship’s name on bow and stern.
Home port and registration number at the stern in waterline color.
Font bow; Snell Roundhand.
Font stern; VAG.
35090.02 Electric anchor winch 1200W/12V mounted on deck with integrated stainless steel anchor rollers and anchor bracket with 30m.
8 mm. Anchor chain according to DIN 766A15 and 15 kg.
Bruce anchor.
Operation by cable control.
Home port and registration number at the stern in waterline color.
Font bow; Snell Roundhand.
Font stern; VAG.
35090.02 Electric anchor winch 1200W/12V mounted on deck with integrated stainless steel anchor rollers and anchor bracket with 30m.
8 mm. Anchor chain according to DIN 766A15 and 15 kg.
Bruce anchor.
Operation by cable control.
EQUIPMENT EXTERIOR CONSTRUCTION 37130.01 Deck lighting with two light points in the mast
WINDOW 38085.02 Aluminum sliding window in saloon front, “Summer Green” tinted on SB side
FINISHING LIGHTING & PLUGS 51080.11 Luxurious LED reading lights (2x) in the forward cabin 51400.11 USB port in the VK and helm station for charging mobile devices.
51615.01 230 V. Socket in the VK on the SB side 51660.01 Additional 230 V. Socket in the saloon (SB at the front next to the steering bench) 51665.01 230 V. Socket outlet in saloon (SB rear)
51615.01 230 V. Socket in the VK on the SB side 51660.01 Additional 230 V. Socket in the saloon (SB at the front next to the steering bench) 51665.01 230 V. Socket outlet in saloon (SB rear)
SANITARY 53130.02 Electric toilet in the forward cabin with on-board flushing system
AUDIO / VIDEO / INTERNET 54010.50 DAB+ radio module and antenna in the mast for digital radio 54200.01 Basic TV connection in the saloon in the BB TV cabinet, incl.
230 V. Socket 54250.01 Glomex TV antenna in the mast, suitable for analog and digital reception.
Suitable for DVBT-T2 network.
54400.01 24″ (60cm) LED TV with integrated DVB-T & DVB-S tuner and DVD/CD player in the saloon
230 V. Socket 54250.01 Glomex TV antenna in the mast, suitable for analog and digital reception.
Suitable for DVBT-T2 network.
54400.01 24″ (60cm) LED TV with integrated DVB-T & DVB-S tuner and DVD/CD player in the saloon
VENTILATION 55090.01 Rain protection caps and mosquito screens for portholes in the forward cabin (4x) 55130.01 Blackout/mosquito screen (roller blind) in the ventilation/escape hatch on the cabin deck 55137.02 Fly screen integrated in e-Variodeck®
INTERIOR UPHOLSTERY 56074.01 Design raised stool so that it can be used as a passenger seat.
EXTERIOR Upholstery 57030.05 Cushion set for cockpit bench in imitation leather, color: lava grey
COVERINGS & CARPENTERS 59020.14 Cockpit Cover Longtop, Sunbrella Cadet Grey.
The side and aft walls can be opened by means of a zipper
The side and aft walls can be opened by means of a zipper
Facts and figures
- Scroll to the side on smaller screens
- Swipe to the side

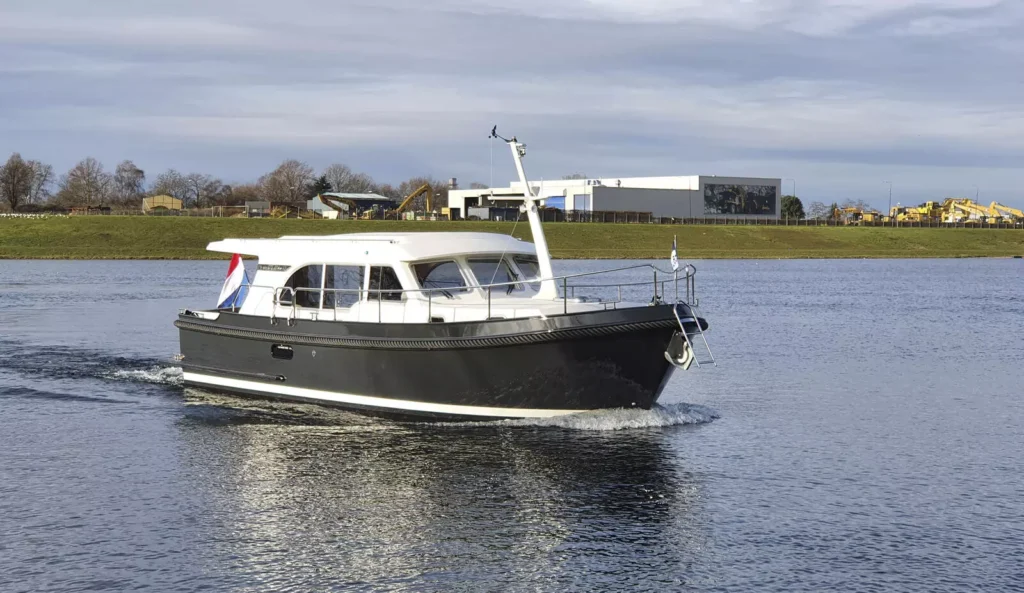

| Basic data | 35.0 Sedan |
|---|---|
| Length x width x draught: | ± 10.70 x 3.35 x 1.00 m |
| Min. Clearance height: |
± 2.37 m (with Variodeck) |
| Standing height VK/Salon/AK: | ± 1,83 / 1,94 m |
| CE classification: | C (Coastal) |
| Tank capacity: | ± 240 ltr diesel ± 220 ltr water ± 240 ltr black water |
| Weight/water displacement: | ± 8,500 kg / ± 8.5 m3 |
| Motorization | 1 x 4 cyl. Volvo Penta Diesel, type D2-75 1 x 55 kW (75 hp) Exhaust certifications EPA Tier 3, EU RCD Stage II, BSO II |
